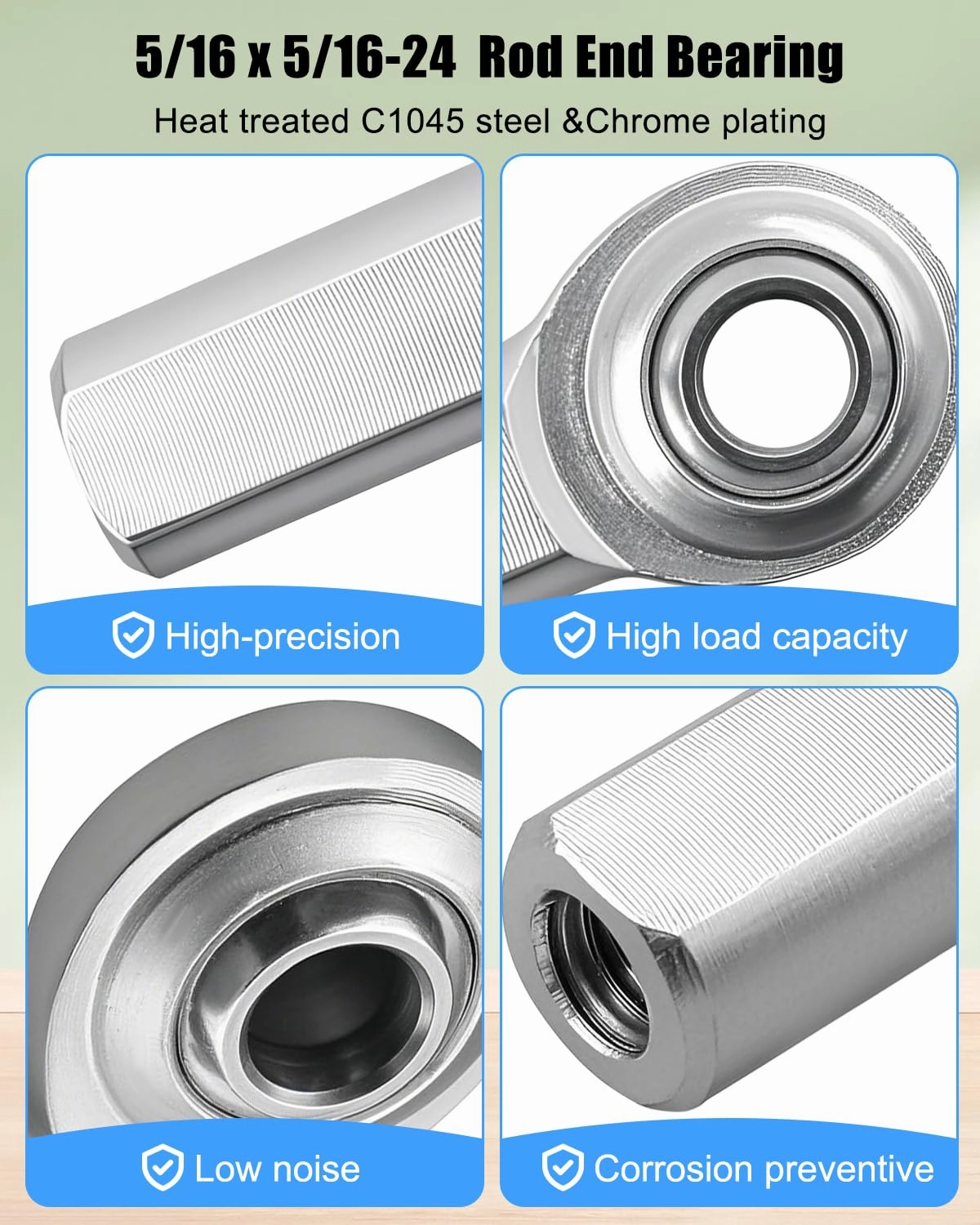

- High-Performance Design: These 5/16" x 5/16"-24 rod end bearing Heim joints are crafted from heat-treated C1045 steel, ensuring high precision, a large load capacity (5110 lbs), low noise, corrosion resistance, and long-lasting durability. The inner ball surface is chrome-plated, while the rod body is zinc-plated for enhanced protection
- Precision Engineering: Each Heim joint features a 5/16" bore, .3125" ball diameter, .437" ball width, 1.375" centerline length, and .687" thread length. Maximum angular misalignment: 11 degree. The right-hand female threads are meticulously machined for smooth operation and precise fit, making them ideal for demanding applications
- Wide Range of Applications: Perfect for hydraulic cylinders, machinery, automotive, motorcycles, ATVs, marine equipment, power tools, and automation systems. These rod end bearings ensure smooth and flexible control in various mechanical setups, including CNC equipment and industrial machinery

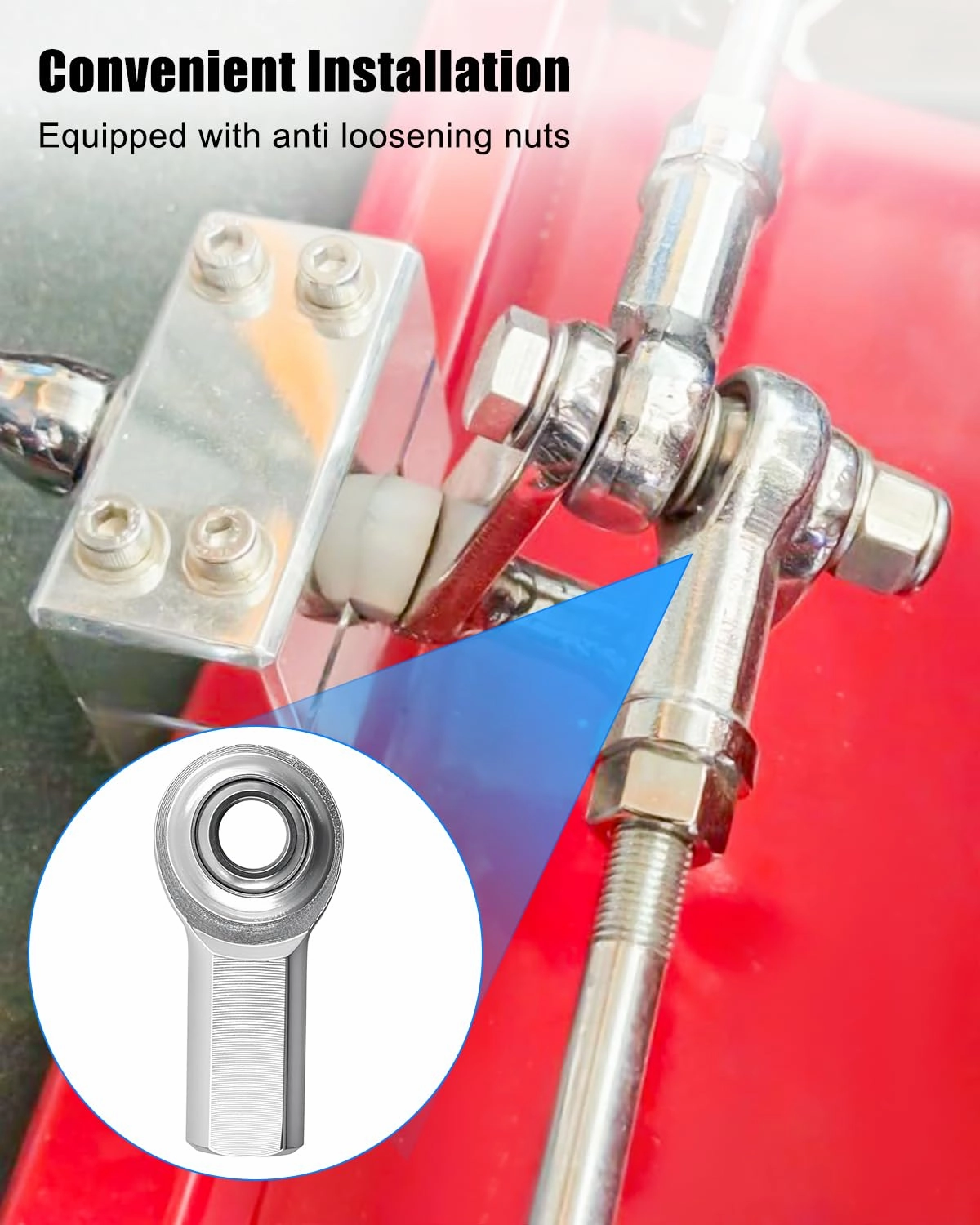

- Easy Installation: Designed for quick assembly, each Heim joint comes with a 5/16-24 threaded jam nut. Simply tighten the nut to secure the joint, saving time and effort during setup without requiring additional adjustments or modifications
- Complete Set Includes: This package contains 4PCS of right-hand female thread rod end bearings and 4PCS of matching jam nuts, providing everything you need for multiple installations or replacements in your projects

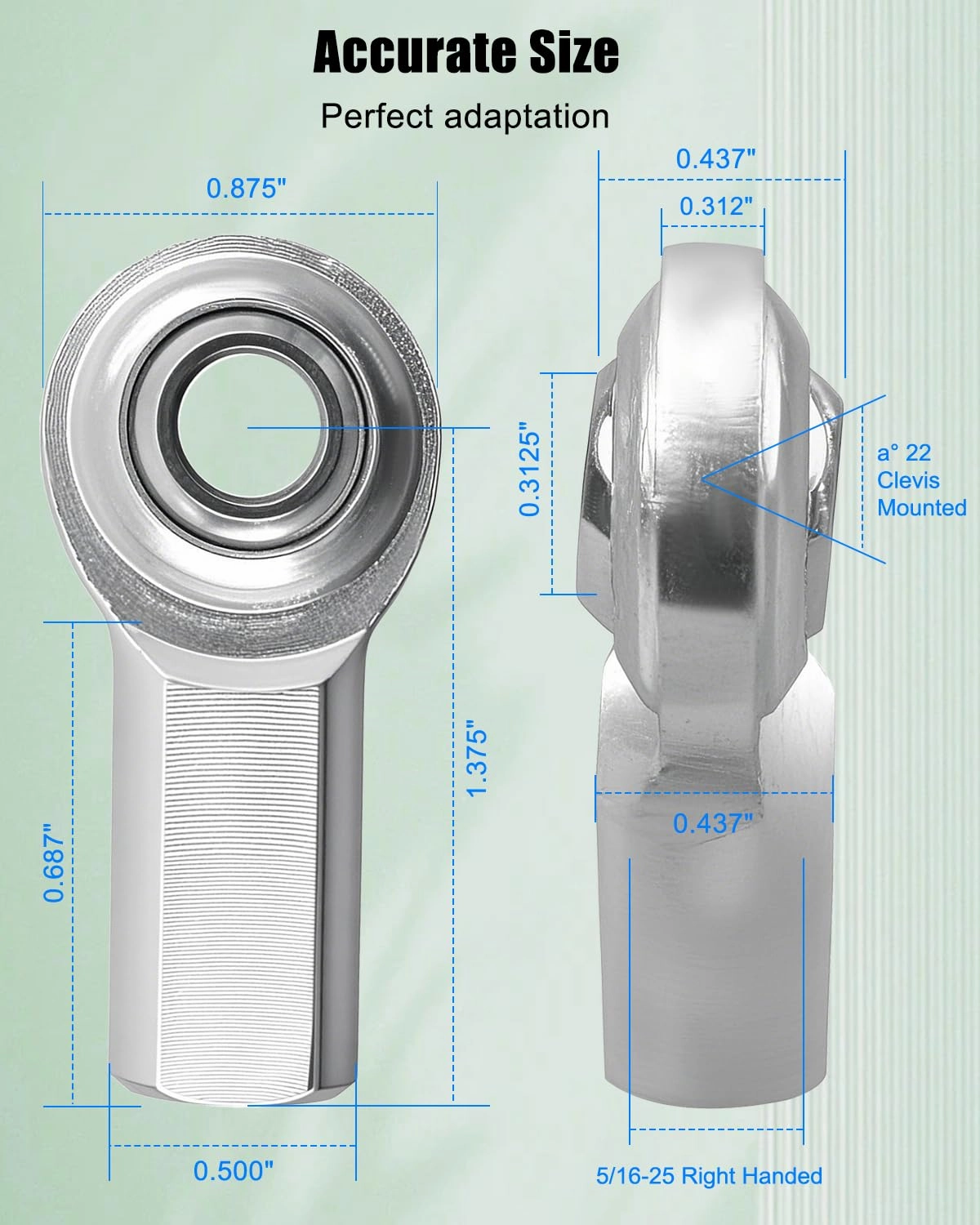

Product Parameters

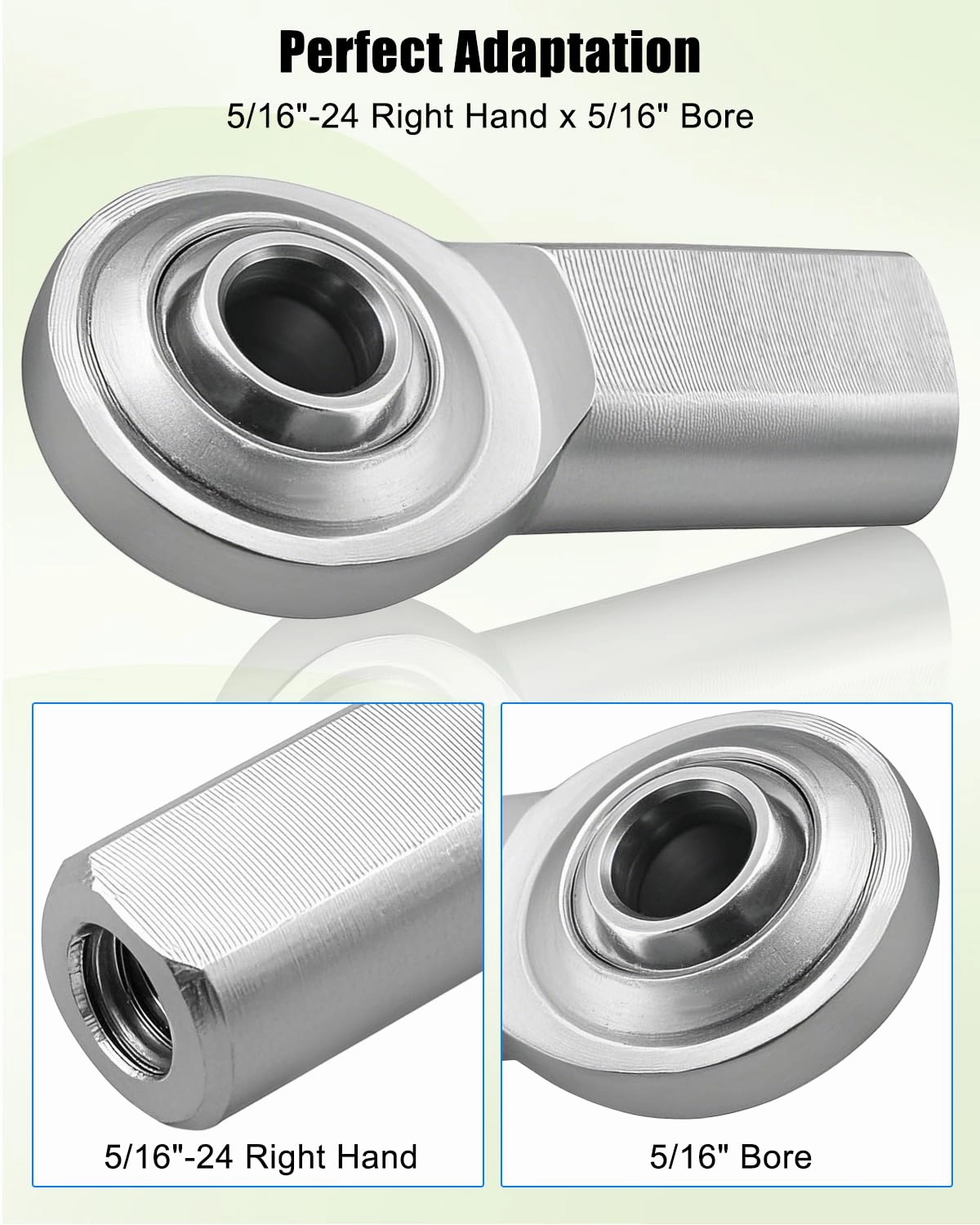

RH 5/16"- 24 Thread x 5/16" Bore
Ball Bore: .3125
Ball Width: .437
Centerline Length: 1.375
Thread Length: .687
Load Capacity: 5110
Maximum Angular Misalignment: 11 Degree
High-Performance Design
--These 5/16" x 5/16"-24 rod end bearing Heim joints are crafted from heat-treated C1045 steel, ensuring high precision, a large load capacity (5110 lbs), low noise, corrosion resistance, and long-lasting durability
--The inner ball surface is chrome-plated, while the rod body is zinc-plated for enhanced protection

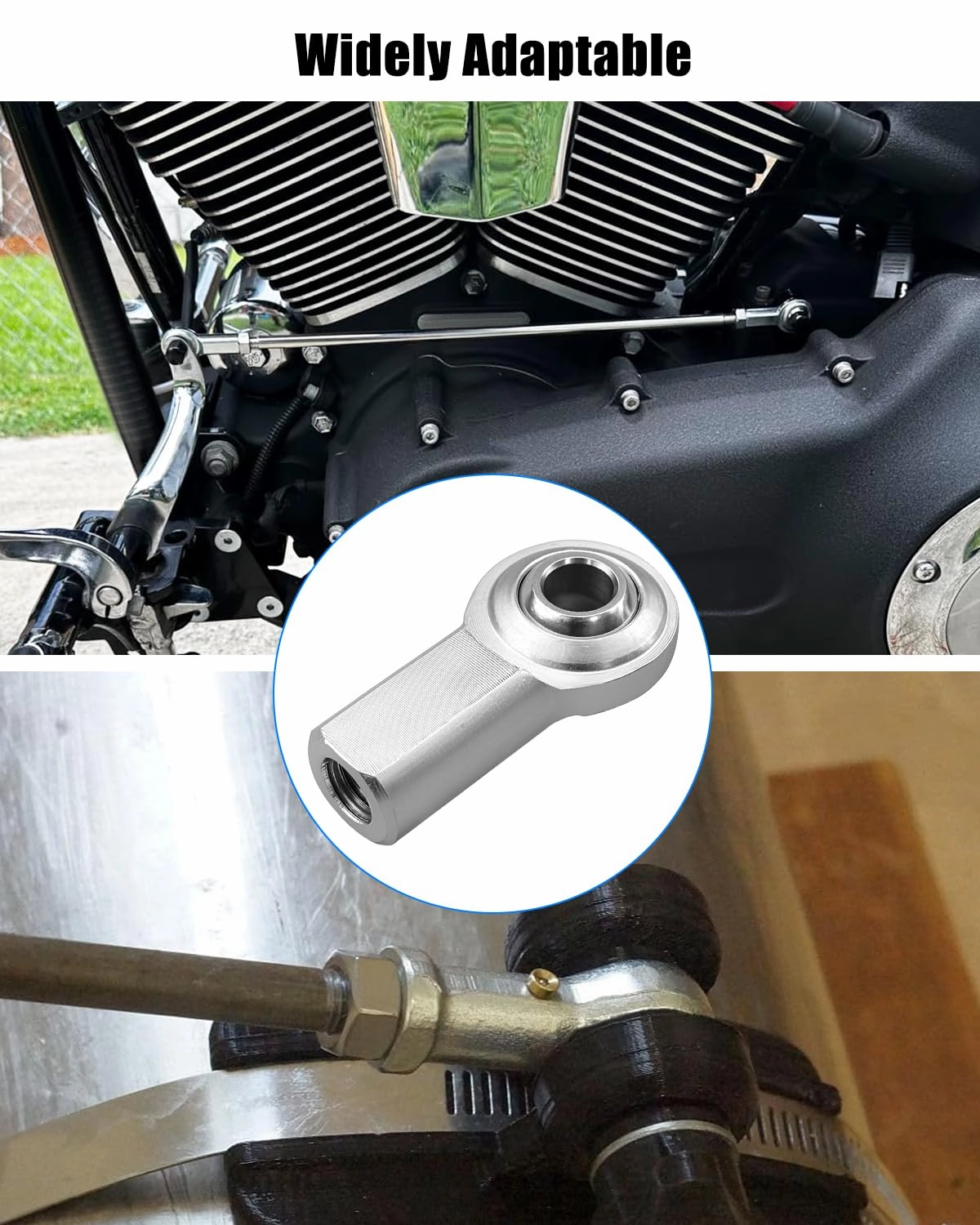

Wide Range of Applications
--Perfect for hydraulic cylinders, machinery, automotive, motorcycles, ATVs, marine equipment, power tools, and automation systems
--These rod end bearings ensure smooth and flexible control in various mechanical setups, including CNC equipment and industrial machinery
Our Advantages
1. Accurate size, carefully processed threads, smooth bearings
2. Can move freely, but will not loosen
3. The threaded wall is sturdy and wear-resistant

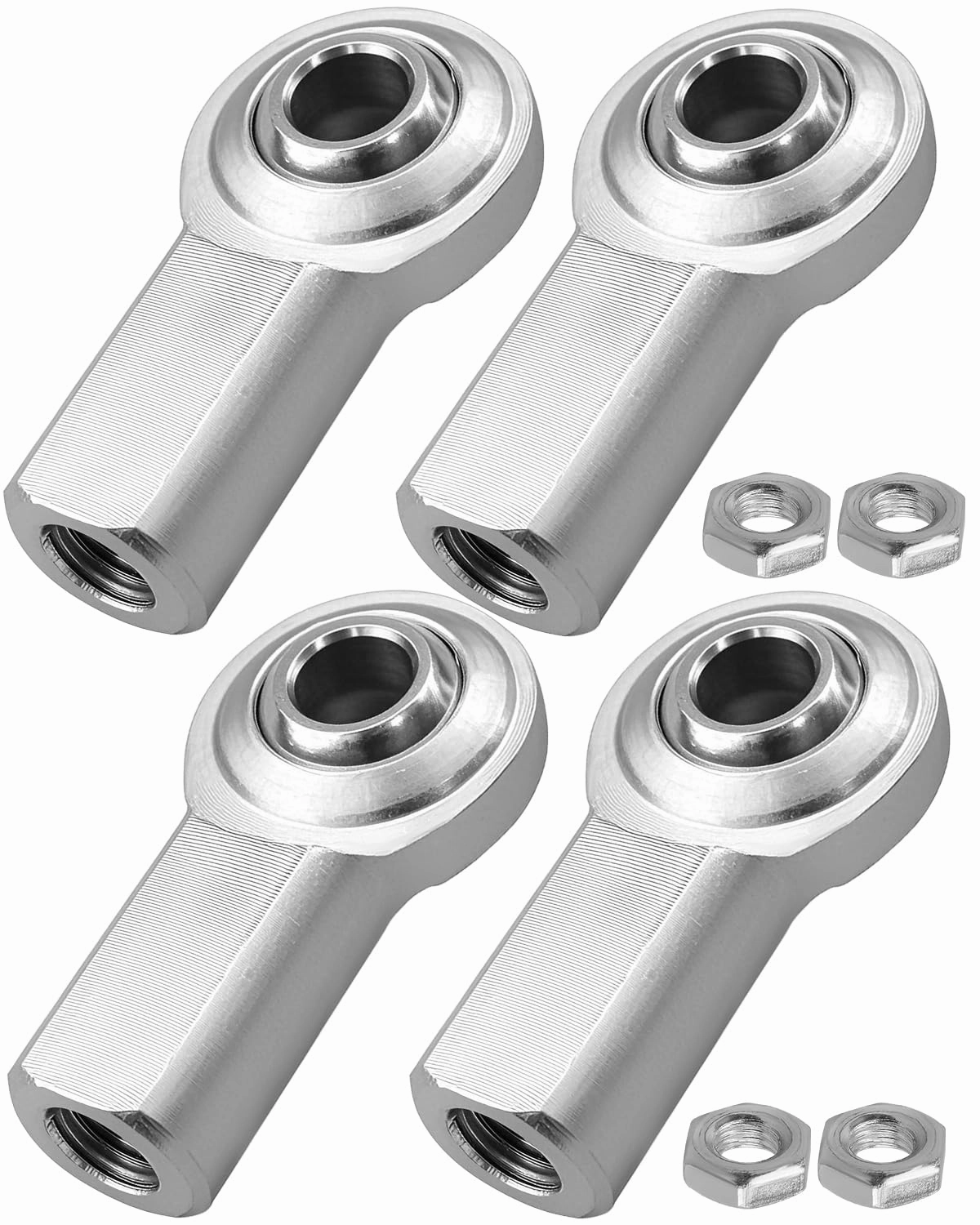

You Can Get
5/16 x 5/16-24 Heim Joint Rod End X 4
Jam Nuts X 4
After-Sale Service
If you have any questions about our products, we will solve them perfectly for you
- Package Dimensions : 3.5 x 2.3 x 0.9 inches; 4.8 ounces
- Date First Available : February 21, 2025
- Manufacturer : QLZOZB
- Country of Origin : China
