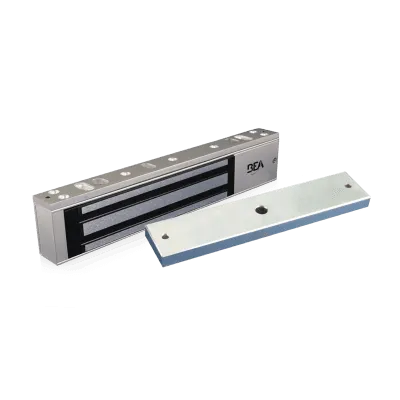

600 LB MAGLOCKS WITH ADJUSTABLE RELOCK  TIME DELAY AND LOCK (BOND) STATUS SENSOR

DESCRIPTION

BEA’s 600 LB MAGLOCKS provide a standards-compliant solution as part of an access control system for retail, healthcare, financial, education or storage facilities. The 600 lb holding force is ideal for mid- to high-level traffic in commercial buildings and can keep individuals safe from certain environments.

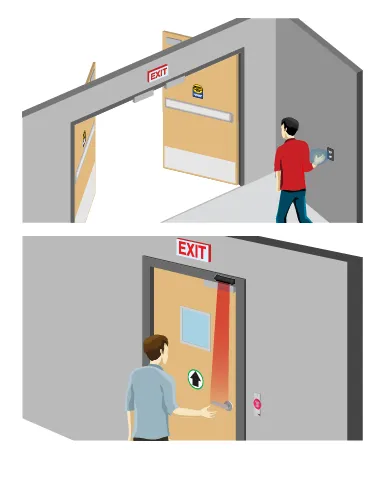

BEA’s electromagnetic locks provide reliability and durability in areas for authorized individuals or doorways leading to an emergency exit. Common applications include access control or egress doors using a sensor or a switch to release the locking device.

The 600 LB MAGLOCKS can be used on hollow metal, wood,
aluminum, glass and composite door materials and are available in surface mount single or double door configurations. Additionally, the adjustable zero to 90 second relock time delay and the lock (bond) status sensor allow configuration of the settings as needed.

User-Configurable
Adjustable zero to 90 second relock time delay

Enhanced Access Control / Monitoring
Lock (bond) status sensor with visible LED offers either normally open
(NO) or normally closed (NC) output configuration

UL 294 Listed
Listed for access control systems and must be used with a UL Listed power supply

Anti-Tampering
The security screw on the front face blocks access to the bottom of the elctromagnetic lock preventing tampering or dismounting

Easy & Flexible Mounting
Mounting hardware like push / pull brackets and adapter plates offer flexible installation and convenient mounting options for various door
stop dimensions

Convenient Packages Available
Available in access control packages with sensor, logic module,
