- Designed for oscilloscopes bandwidth applications up to 100 MHz
- Includes adjusting tool: adjusts compensation capacitance to assure the probe matches oscillograph
- Injection-molded construction allows for both flexibility and rigidity, withstanding harsh automotive testing enviroments
- Modular design with 12cm ground wire with alligator clips, 4 pairs of colorized cable identifiers, and ground locating sleave for IC testing
- Compliant with international safety standards, featuring an ergonomic portable design for efficient and precise measurements
Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
Specification:
- System BandWidth: x1: DC-6MHz; x10: DC-100MHz
- Attenuation: x1/x10
- Input Resistance: 10M ohms / 1M ohms
- Input Capacitance: x1 85pF-115pF; x10 18.5pF-22.5pF
- Compensation Scope: 20pF-40pF
- Input Voltage: x1: <200V DC Peak AC; x10: <600V DC Peak AC
- Weight: 55g
- Cable Length: 120 cm
- Temperature Scope: Operation/-10 to 50celsiu, None Operatin/-20 to 75 celsiu
- Humidity: under 85 percent

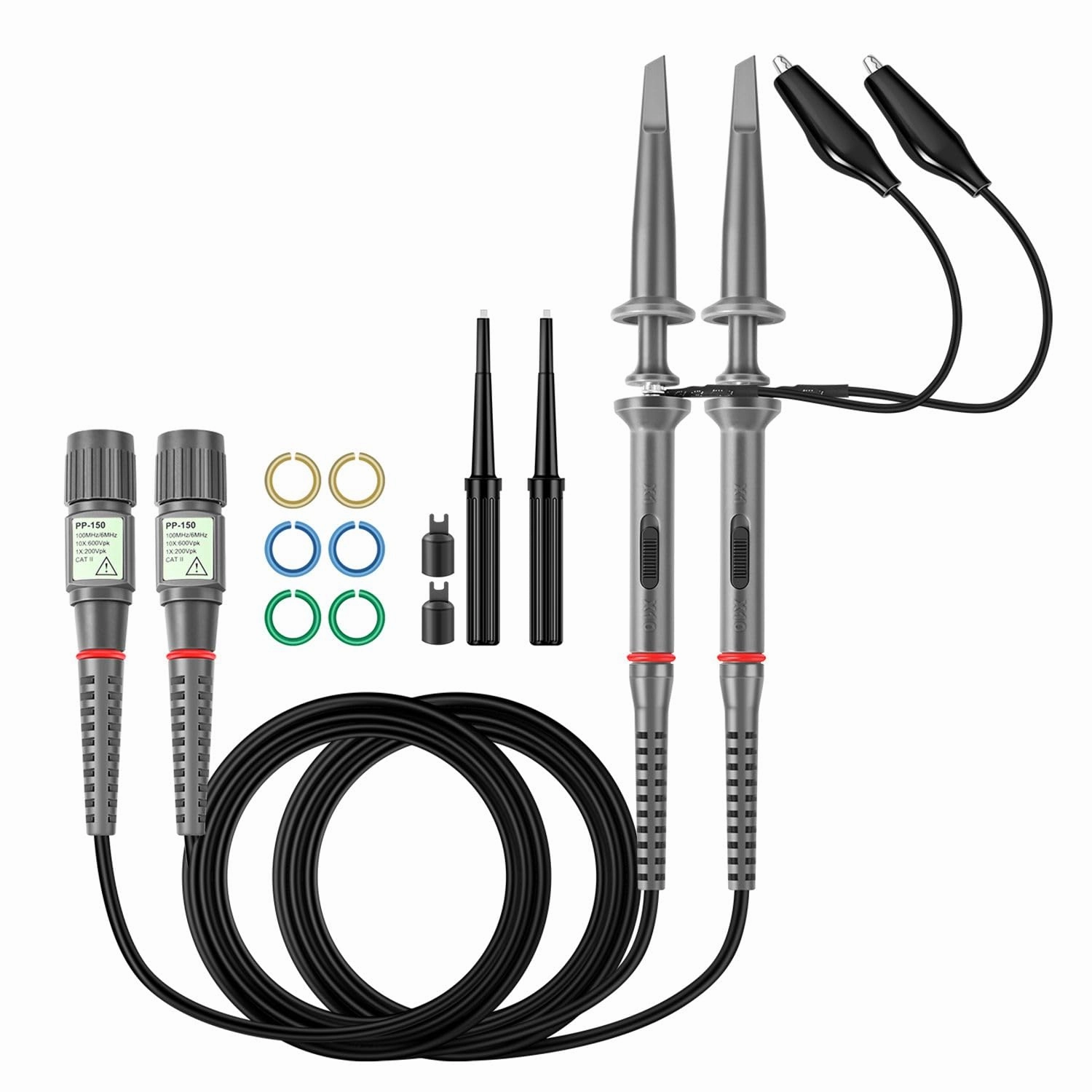

Package Content:
- 1x Screw driver
- 8x Marker bands
- 4x Tip locating sleeves
- 2x Mini Alligator Clips and Ground leads
- 2x Interchangeable Probe Clip Tips
- Is Discontinued By Manufacturer : No
- Product Dimensions : 6 x 5 x 0.5 inches; 2 ounces
- Date First Available : November 9, 2017
- Manufacturer : TNP Products
- Country of Origin : China
