Parameters

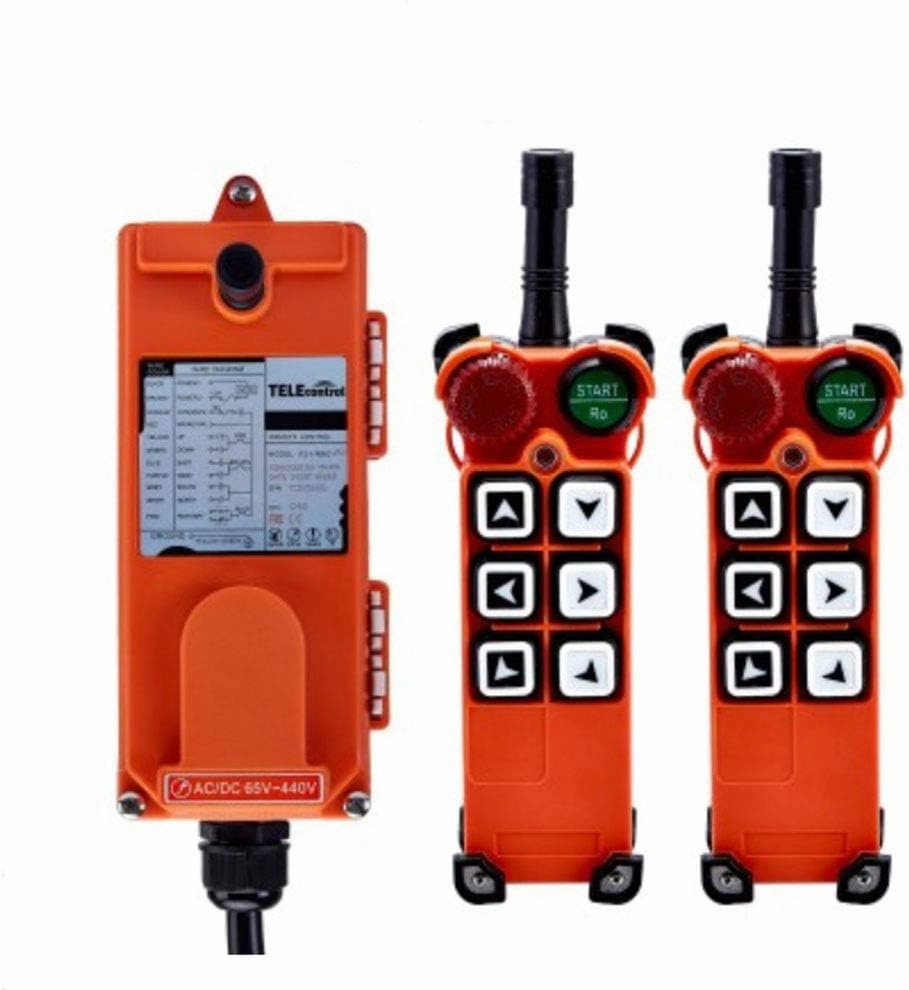

Transmitter
Number of function buttons: 6x one-step buttons
Other buttons: 1 START button, 1 Emergency Stop button
Material: Glass-Fiber PA 66
Dimension:156*61*51mm
Weight: 255G (without batteries)
Protection Class: IP65
Frequency range: VHF: 310~331MHz; UHF: 425~446MHz
Transmitter power: Less than or equal to 10dBm
Power supply: DC 3V (2AA Batteries)
Safety code: 32bits (4.3 billion)
Temperature range: -40~85 degrees Celsius
Control distance: Approx100m(200 meters is customized)

Receiver
Receiver power supply: 65-440V AC/DC
Material: Glass-Fiber PA66
Dimension: 205*86*80mm
Weight: 620G
Protection Class: IP65
Temperature range: -40~85 degrees Celsius
Frequency range: VHF: 310~331MHz; UHF: 425~446MHz
Receiver sensitivity: -110dBm
Cable length: 1.65 meters
Safety code: 32 bits (4.3 billion)
Control distance: Approx100m (200 meters is customized)

Note:
The LED on the front of the transmitter indicates the condition of the batteries. It will flash green during operation if the battery power is sufficient and will flash red if the battery power is low.
If the LED is flashing red, or if the operation becomes erratic, or will only work from a short distance, replace both batteries with new AA alkaline batteries.

Application
Bridge Crane / Overhead crane / Chain Hoist / Monorails / Concrete Pump Truck / Mobile Lifting / Tower Crane

Package includes:
1.One transmitter with hanging belt
2. One dust bag;
3. One receiver;
4. One 1.65m cable connect with receiver;
5. One receive antenna;
6. One operation and maintain manual
