- Classic Gasoline Horizontal Engine: It adopts water-cooled stirling engine and uses adjustable speed carburetor. It is carefully crafted from brass and stainless steel. You will love exquisite horizontal gasoline engine model.
- Sophisticated Manufacture: We use precision casting for the entire engine, and each part is carefully crafted.The gasoline engine is elaborately made of all metal, and the surface is polished to make it very smooth.
- Engine Startup Steps: 1. Check the wiring of the engine, connect the fuel tank pipe, and install 3 AA batteries. 2.Fill the fuel tank with gasoline(95). Make sure no air in the oil pipe after filling. 3.On the right side of the engine, slowly turn conterclockwise by hand, making the mixed gasoline fully enter the cylinder. 4.Turn on the power switch and turn the flywheel to start the engine counterclockwise on the right side of the engine.
- Excellent Gifts: This exquisite engine model is easy to operate and full of fun. It can be used as a desktop model to play, as a boutique model for collection, and also as an excellent personalized gift for mechanical crafts model lovers.
- Note: 1.If the ignition deviceand the cylinder is normal, and the machine still does not start normally, its very likely that the carburetor needle should be adjusted. 2.Screw the screw on the top of the carburetor, then loosen 1/4 turn, start the flywheel. Do it several times to make the mixing ratio of gasonline and air reach the normal working mix ratio.

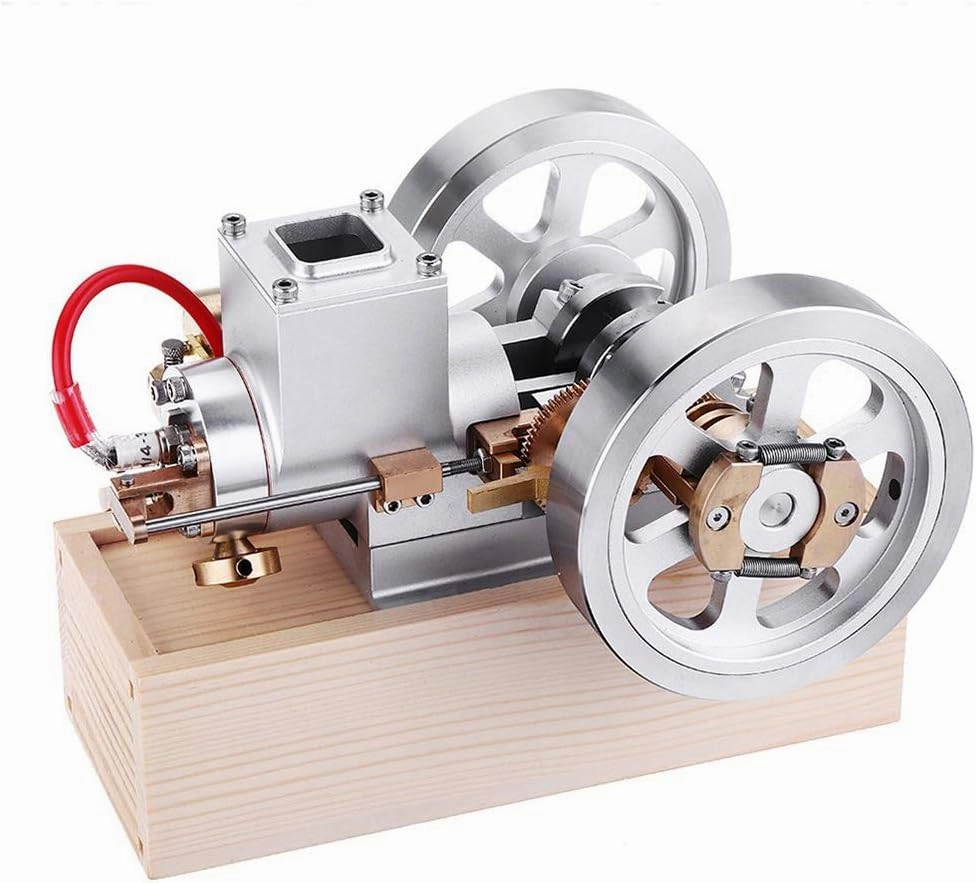

Realistic Internal Combustion Engine Model Kit, Hit and Miss Engine Motor Model, Metal Horizontal Engine Kits Educational Toy Model for Adults with Hand Start Device
Specifications:
Parameters
Engine size: 180 x 125 x 75mm
Size of wooden base: 180 x 66 x 50mm
Cylinder diameter: 22mm. Stroke: 20mm
Revolution: 1200rmp/min
Power supply: 3.7v. Fuel: gasoline
Color: As Shown
Material: Metal Wood
Product Size: 18 x 12 x 12.5cm
Product Weight: 1900g
Package Including
.1 x Gas Engine Model
.1 x Hand Start Device
